QIACHIP TX181-4 Instruction Manual DC 3V-24V 433MHz RF Power-on Transmitter Module

QIACHIP TX181-4 Product Diagram.webp

Version: V1.0

Last Updated: 2026-2-28

Model: TX181-4

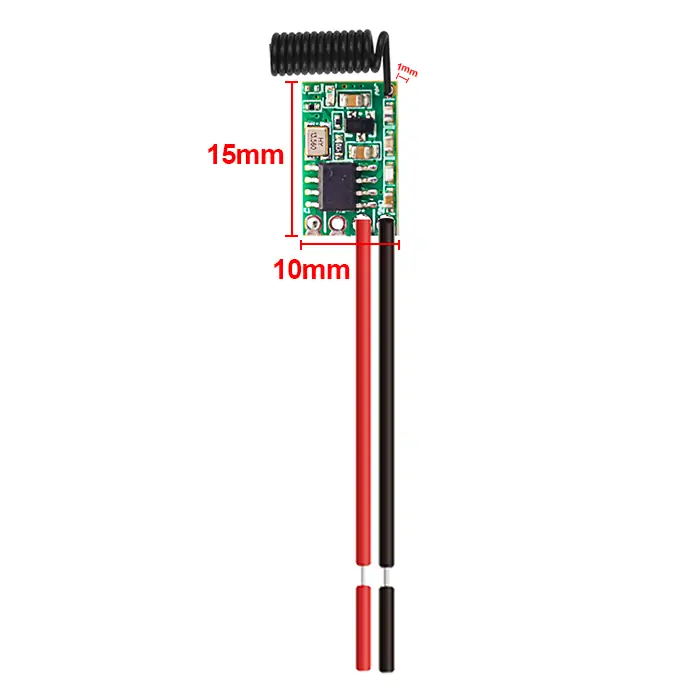

Product Size

QIACHIP TX181-4 Size Figure.webp

  • Receiver Length (L) x Width (W) x Height (H): 15mm x 10mm x 1mm

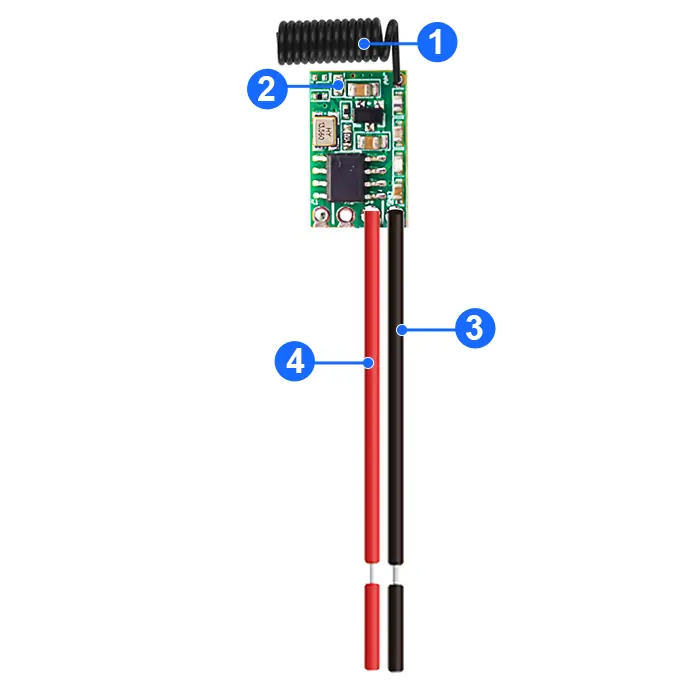

Component Description

QIACHIP TX181-4 Component Description Figure.webp

  • 1: Antenna
  • 2: Indicator light
  • 3: GND (Power Ground Pin)
  • 4: V+ (Positive Power Input Pin)

Wiring Diagram

Disconnect power before wiring.

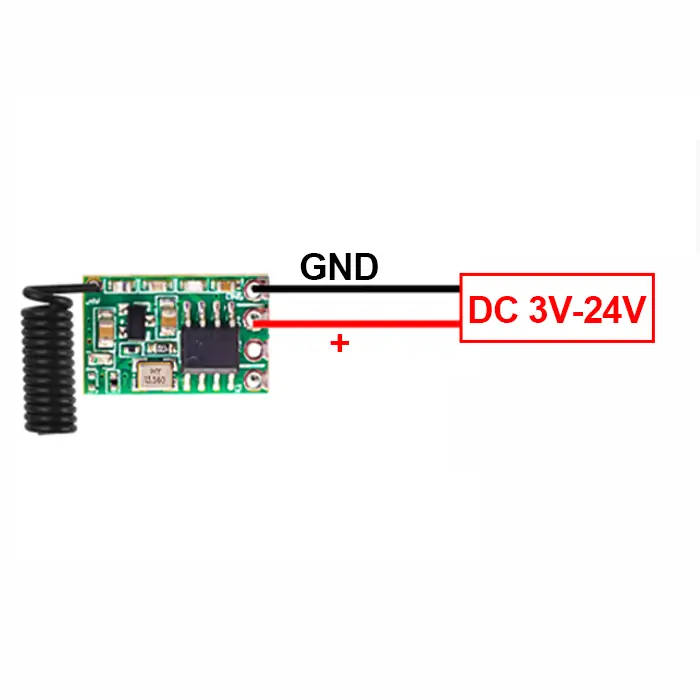

Figure 1

QIACHIP TX181-4 Wiring Diagram 1.webp

  • Input Power: DC 3V-24V
  • When the module is powered on, the indicator lights up and the module starts transmitting signals.
  • When the module is powered off, the indicator turns off and the module stops transmitting signals.

Figure 2

QIACHIP TX181-4 Wiring Diagram 2.webp

  • Input Power: DC 3V-24V
  • After the module is powered on, pressing the external button will turn on the module's indicator light and make it transmit signals.
  • When the external button is released, the module indicator turns off and signal transmission stops.

Electrical characteristics

Parameter Value
Input voltage DC 3.0V-24V
RF frequency 433.92MHz
Transmit Power ≥10dBm
Transmission Distance 100m - 300m (open and unobstructed environment)
Transmission Power Consumption 5 - 6 mA
Working temperature -40~85℃
Size 15x10x1mm

NOTE

  1. This product is a CMOS device. Anti-static precautions must be taken during storage, transportation and operation.
  2. Ensure reliable grounding when the device is in use.
