QIACHIP KR3001A Instruction Manual DC 5V-60V 433MHz RF Remote Control Switch 1-CH Relay Receiver

KR3001A Product Diagram.webp

Version: V1.0

Last Updated: 2025-7-16

Model: KR3001A

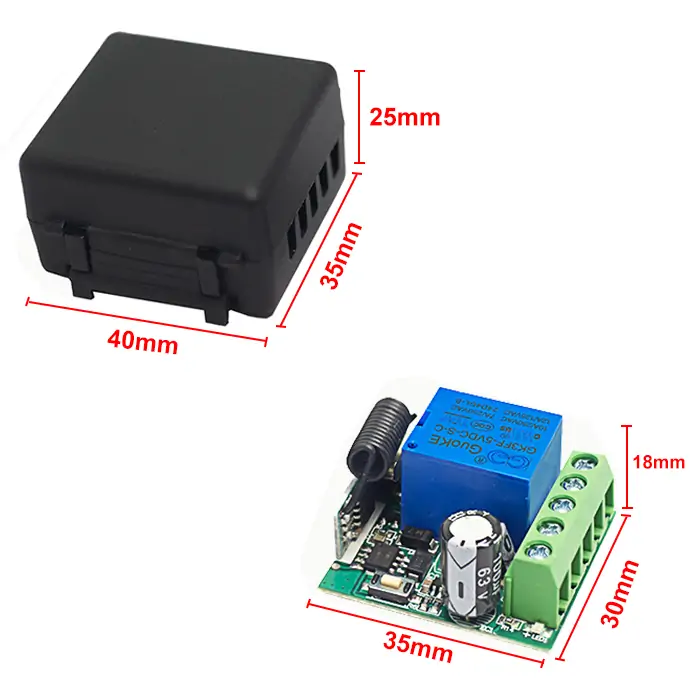

Product Size

QIACHIP KR3001A Size Figure.webp

  • Receiver Length (L) × Width (W) × Height (H): 35mm × 30mm × 18mm
  • Housing Length (L) × Width (W) × Height (H): 40mm × 35mm × 25mm

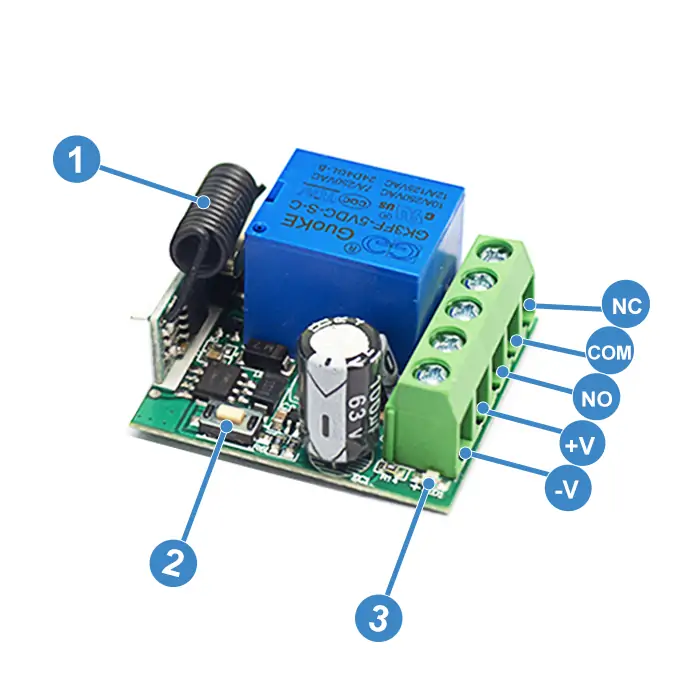

Component description

QIACHIP KR3001A Component Description Figure.webp

  • 1: Antenna
  • 2: Learning button
  • 3: Indicator light
  • +V: Positive input terminal
  • -V: Negative input terminal
  • NO: Normally open terminal
  • COM: Common terminal
  • NC: Normally closed terminal

Wiring diagram

Disconnect power before wiring.

Figure 1

KR3001A Wiring Diagram 1.webp

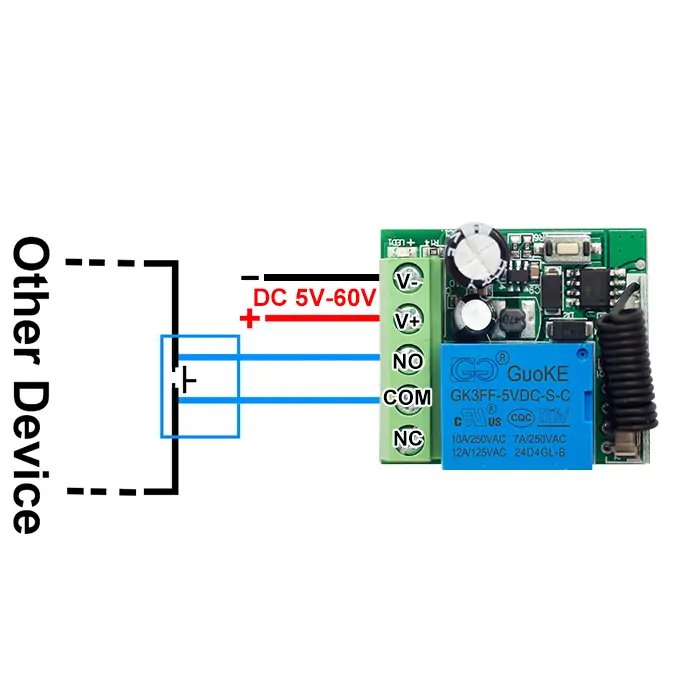

Figure 1: For door access switches or switches of other devices

  • Input Power: DC 5-60V
  • Output switching signal, which can replace switches to control other devices.
  • Dry contacts: Potential-free contacts that act only as a switch to connect or disconnect external circuits.

Figure 2

KR3001A Wiring Diagram 2.webp

Figure 2: Wiring diagram for DC Motors

  • Load: DC Motor
  • Input power: DC 5-60V

Figure 3

KR3001A Wiring Diagram 3.webp

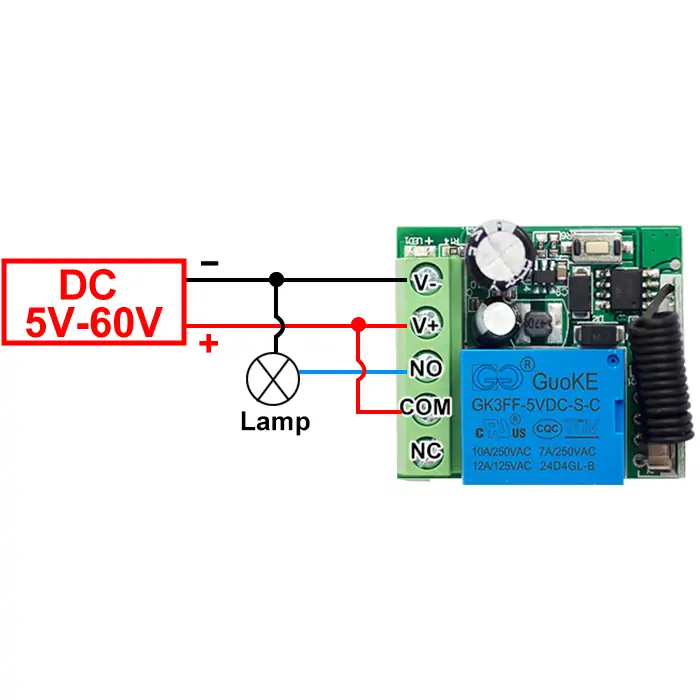

Figure 3: Wiring diagram for Lamp

  • Load: Lamp
  • Input power: DC 5-60V

Function description and setting method

(1) Momentary mode; (2) Toggle mode; (3) Latching mode; (4) Delay mode; (5) Reset function.

  • When you use the third working mode, a remote control with at least two buttons is required.
  • When pairing a second remote, you don't need to press the button on the receiver 8 times again to reset it.
  • Once the receiver and transmitter are paired and a working mode is selected, the receiver will retain this mode even if powered off and on again.
  • The following working modes require the use of QIACHIP brand remote controls (transmitters) and controllers (receivers/wireless remote control switches). Compatibility with other brands is not guaranteed

(1) Momentary mode

In this mode:

  • Press and hold the remote control button (such as A), and the corresponding relay on the receiver is turned on.
  • Release the remote control button (such as A), and the corresponding relay on the receiver will turn off.

How to set momentary mode

Step 1

Click the learning button of the receiver once. The indicator light on the receiver turns on and the receiver enters the setting state.

Step 2

Press the button on the remote control (such as A) once. The indicator light on the receiver will flash and then turns off.The momentary mode is set successfully.

(2) Toggle mode

In this mode:

  • Press the remote control button (such as A), and the corresponding relay on the receiver will turn on.
  • Press the remote control button (such as A) again, and the corresponding relay on the receiver will turn off.

How to set toggle mode

Step 1

Click the learning button of the receiver twice. The indicator light on the receiver turns on, and the receiver enters the setting state.

Step 2

Press the button on the remote control (such as A) once. The indicator light on the receiver will flash and then turns off.The toggle mode is set successfully.

(3) Latching mode

In this mode:

  • Press the remote control button (such as A), and the receiver's relay turns on.
  • Press the remote control button (such as B), and the receiver's relay turns off.

How to set latching mode

Step 1

Click the learning button of the receiver three times. The indicator light on the receiver turns on, and the receiver enters the setting state.

Step 2

Press the button on the remote control (such as A) once. The indicator light on the receiver will flash and then turns on.

Step 3

After the indicator light goes out, press another button (such as B) on the same remote control. The indicator light on the receiver will flash and then turn on. The latching mode is set successfully.

(4) Delay mode

In this mode:

  • Press the remote control button (such as A), and the corresponding relay of the receiver will enter delay mode.

How to set delay mode

Step 1 Click the learning button of the receiver 4 times. The indicator light on the receiver turns on, and the receiver enters the setting state.

(Press the receiver button 4 times: The corresponding relay will close after a 5-second delay);

(Press the receiver button 5 times: The corresponding relay will close after a 10-second delay);

(Press the receiver button 6 times: The corresponding relay will close after a 15-second delay);

(Press the receiver button 7 times: The corresponding relay will close after a 20-second delay).

Step 2

Press the button on the remote control (such as A) once. The indicator light on the receiver will flash and then turns off. The delay mode is set successfully,

(5) Reset function

  • When the KR3001A receiver is reset, all paired transmitters will be unpaired and can no longer control the receiver.

How to Reset

Click the learning button on the receiver 8 times. The reset is complete when the indicator light flashes and then turns off.

Electrical characteristics

Parameter Value
Input voltage DC 5-60V
RF frequency 433.92MHz
Standby current 5 mA
Rated Load Max 600W
Receiver sensitivity -97dBm
Operation mode Momentary mode/Toggle mode/Latching mode/Delay mode
Working temperature -10℃~+80℃
Size 35x30x18mm

Warning

  • The positive and negative terminal wires must not be reversed
  • When using wireless electronic devices, avoid proximity to metal objects, large electronic equipment, electromagnetic fields, and other sources of strong interference
