QIACHIP KR2201WB Instruction Manual AC 110V 220V WIFI Tuya Smart Remote Control Switch 1-CH Relay Receiver
Version: V1.0
Last Updated: 2026-02-02
Model: KR2201WB

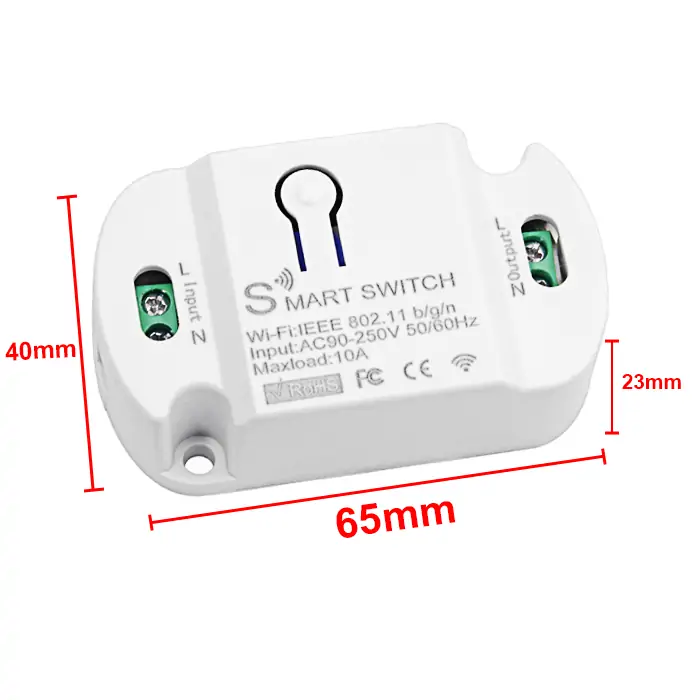

Product Size
- Receiver Length (L) x Width (W) x Height (H): 65mm x 40mm x 23mm
Component Description
- 1: Learning button
- 2: Indicator light
- L-In: Live wire Input terminal
- N-In: Neutral wire Input terminal
- L-Out: Live wire Output terminal
- N-Out: Neutral wire Output terminal
Wiring Diagram
Disconnect power before wiring.
Figure 1

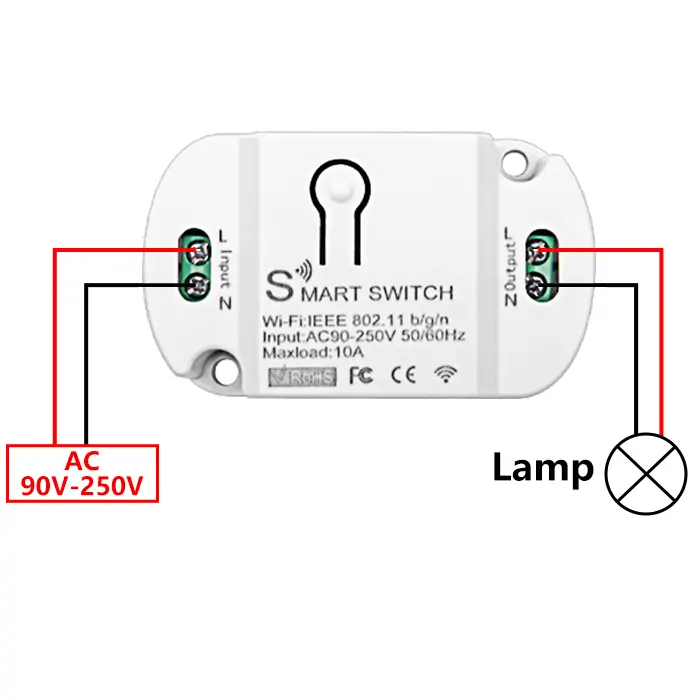

Figure 1: Wiring diagram for Lamp
- Load: Lamp
- Input Power: AC 90V-250V
Pairing with Tuya APP
Step 1
Connect your phone to 2.4GHz WIFI and turn on Bluetooth.
Step 2
Long press the learning button on the receiver for more than 6 seconds until the indicator light flashes, and the WIFI pairing mode will be successfully activated.
Step 3

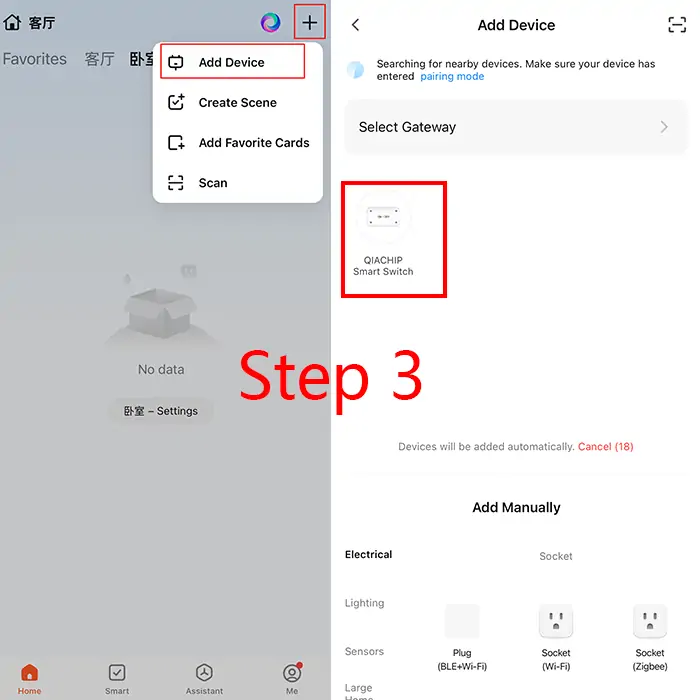

Open the Tuya APP. Tap "+" to add a device in the top right corner of the screen, and then tap the device that appears to start the pairing process.
Step 4

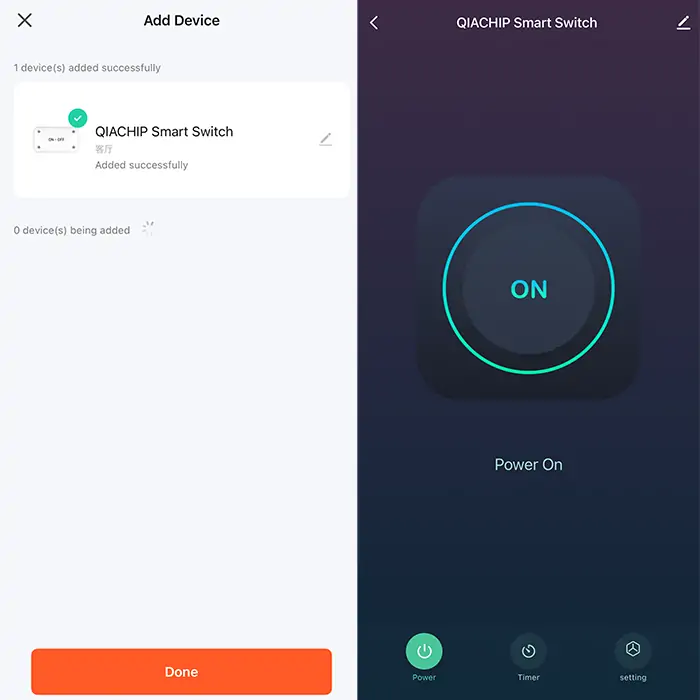

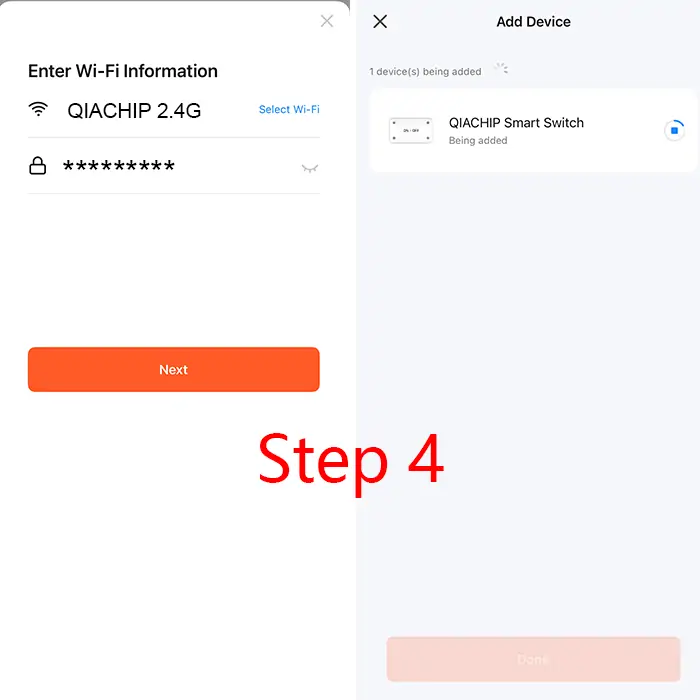

Enter the password of the connected 2.4G WIFI, and then wait until the device pairing is completed.
How to connect to third-party applications such as Alexa and Google assistant
Step 1
Open the Tuya APP and select the device to be connected.
Step 2

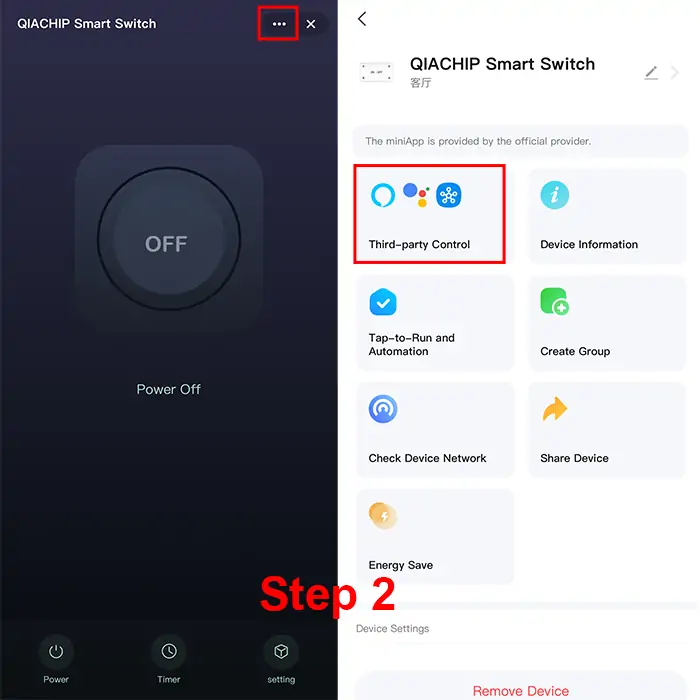

Access the device control page and tap the "···" settings icon in the top-right corner.
On the device information page, view the list of third-party control platforms supported by the device.
Step 3

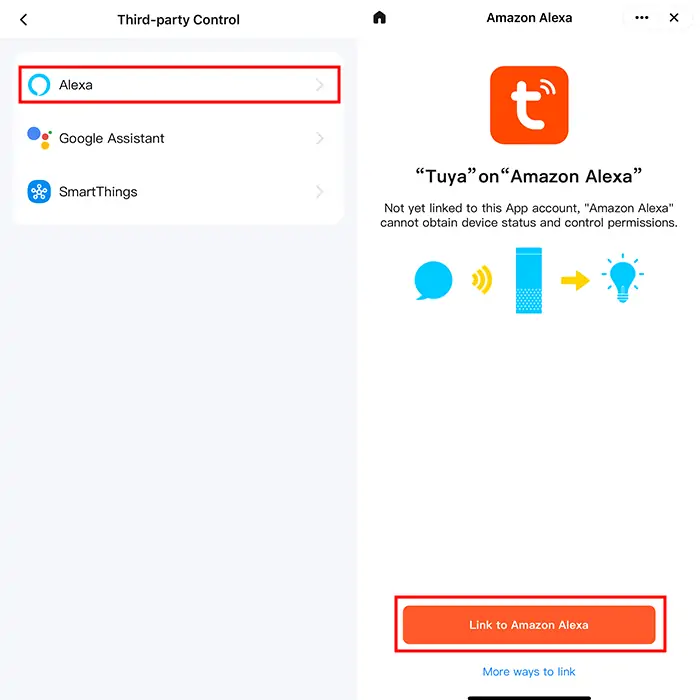

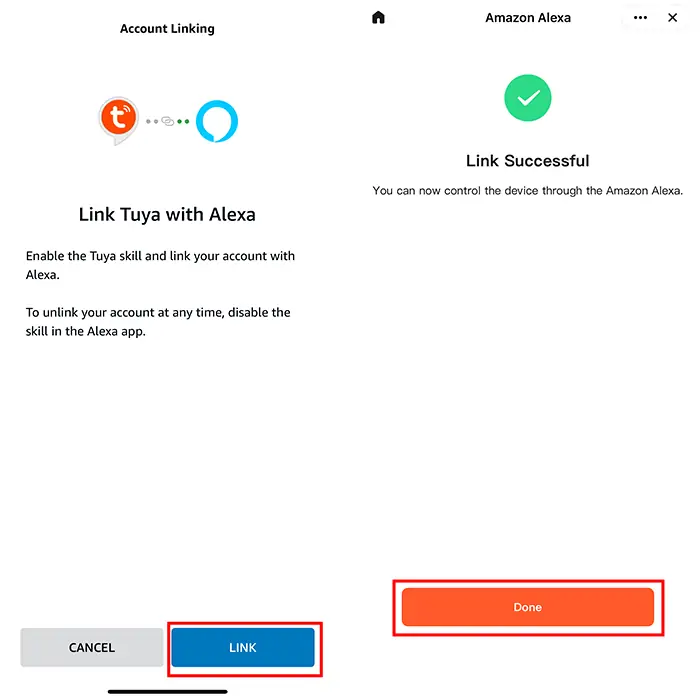

Select the platform you want to connect to (e.g., Alexa), tap the corresponding icon to enter the binding interface, and follow the on-screen prompts to complete the binding.
Electrical characteristics
| Parameter | Value |
|---|---|
| Input voltage | AC 90V-250V |
| WIFI frequency | IEEE 802.11 b/g/n |
| Maximum Load Current | 10A |
| Rated Load | Max 2200W |
| Receiver sensitivity | -108dBm |
| Working temperature | -10℃~70℃ |
| Size | 65x40x23mm |
Note: Rated Load breakdown by scenario: resistive load 2200W, LED light 300W, inductive load 500W, capacitive load 200W, incandescent lamp 2200W, energy-saving lamp 300W.
Warning
- L and N wires must not be reversed.
- When using wireless electronic devices, avoid proximity to metal objects, large electronic equipment, electromagnetic fields, and other sources of strong interference.
