QIACHIP KR2201F-4 Instruction Manual AC 110V 220V 433MHz RF Remote Control Switch 1-CH Relay Receiver

QIACHIP KR2201F-4 Product Diagram.webp

Version: V1.0

Last Updated: 2026-01-16

Model: KR2201F-4

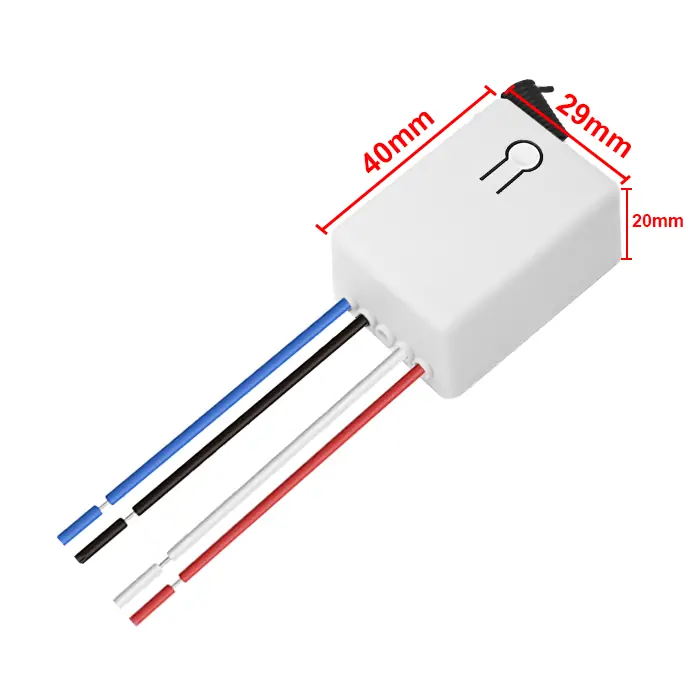

Product Size

QIACHIP KR2201F-4 Size Figure.webp

  • Receiver Length (L) x Width (W) x Height (H): 40mm x 29mm x 20mm

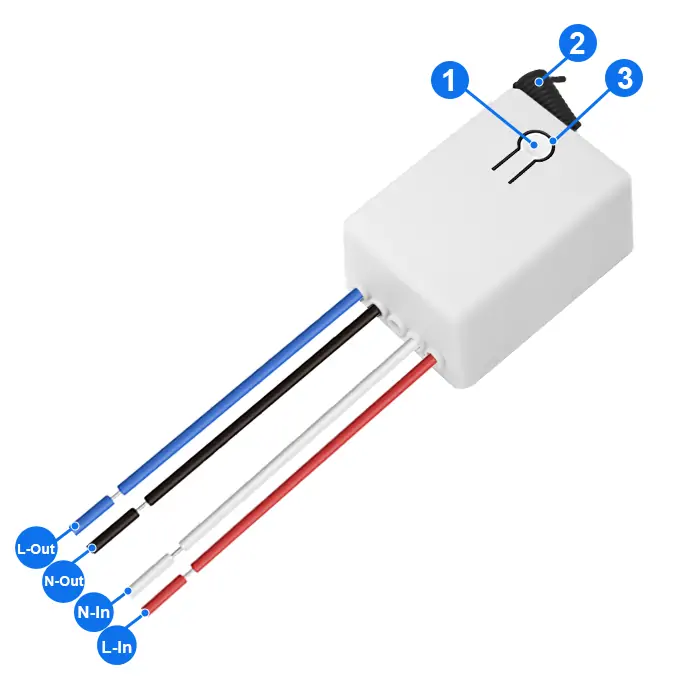

Component Description

QIACHIP KR2201F-4 Component Description Figure.webp

  • 1: Learning button
  • 2: Antenna
  • 3: Indicator light
  • L-Out: Live wire output terminal
  • N-Out: Neutral wire output terminal
  • L-In: Live wire input terminal
  • N-In: Neutral wire input terminal

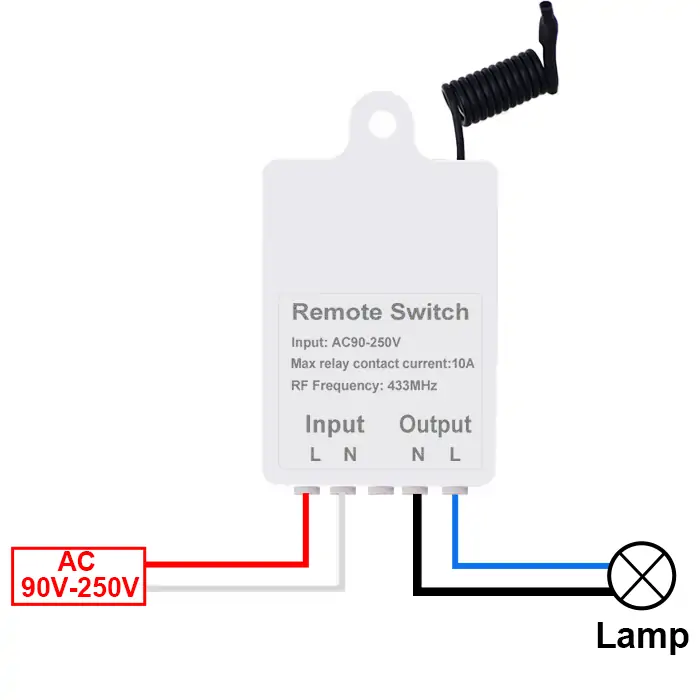

Wiring Diagram

Disconnect power before wiring.

Figure 1

QIACHIP KR2201F-4 Wiring Diagram.webp

Figure 1: Wiring diagram for Lamp

  • Load: Lamp
  • Input Power: AC 90V-250V

Function description and setting method

(1) Momentary mode; (2) Toggle mode; (3) Latching mode; (4) Reset function; (5) Power-On Auto-Engagement.

  • When you use third working mode, a remote control with at least two buttons is required.
  • When pairing a second remote, you don't need to press button on the receiver 8 times again to reset it.
  • Once the receiver and transmitter are paired and a working mode is selected, the receiver will retain this mode even if powered off and on again.
  • The following working modes require the use of QIACHIP brand remote controls (transmitters) and controllers (receivers/wireless remote control switches). Compatibility with other brands is not guaranteed.

(1) Momentary mode

In this mode:

  • Press and hold the remote control button (such as A), and the corresponding relay on the receiver will turn on.
  • Release the remote control button (such as A), and the corresponding relay on the receiver will turn off.

How to set momentary mode

Step 1

Click the learning button of the receiver once. The indicator light on the receiver will flash and then turn on, and the receiver will enter the setting state.

Step 2

Press the button on the remote control (such as A) once. The indicator light on the receiver will flash and then will turn off. The momentary mode will be set successfully.

(2) Toggle mode

In this mode:

  • Press the remote control button (such as A), and the corresponding relay on the receiver will turn on.
  • Press the remote control button (such as A) again, and the corresponding relay on the receiver will turn off.

How to set toggle mode

Step 1

Click the learning button of the receiver twice. The indicator light on the receiver will flash and then turn on, and the receiver will enter the setting state.

Step 2

Press the button on the remote control (such as A) once. The indicator light on the receiver will flash and then will turn off. The toggle mode will be set successfully.

(3) Latching mode

In this mode:

  • Press the remote control button (such as A), and the receiver's relay will turn on.
  • Press the remote control button (such as B), and the receiver's relay will turn off.

How to set latching mode

Step 1

Click the learning button of the receiver three times. The indicator light on the receiver will flash and then turn on, and the receiver will enter the setting state.

Step 2

Press the button on the remote control (such as A) once. The indicator light on the receiver will flash and then will turn on.

Step 3

After the indicator light turns on, press another button (such as B) on the same remote control. The indicator light on the receiver will flash and then turn off. The latching mode will be set successfully.

(4) Reset function

  • When the KR2201F-4 receiver is reset, all paired transmitters will be unpaired and will no longer be able to control the receiver.

How to reset

Click the learning button on the receiver 8 times. The indicator light will flash and then will turn off. The reset will be complete.

(5) Power-On Auto-Engagement

  • After this mode is set, the relay will automatically turn on when the receiver is powered back on after a power outage.

How to set Power-On Auto-Engagement

Press the receiver's learning button 6 times in quick succession until the indicator light flashes and then goes off. Power-On Auto-Engagement is now set successfully. (After successful setup, the relay will remain in the energized state when the device is powered back on, regardless of its state before the power outage.)

Electrical characteristics

Parameter Value
Input voltage AC 90V-250V
RF frequency 433.92MHz
Maximum Load Current 10A
Rated Load Max 2200W
Receiver sensitivity -108dBm
Operation mode Momentary mode/Toggle mode/Latching mode/Power-On Auto-Engagement
Working temperature -10℃~70℃
Size 40x29x20mm

Warning

  • L and N wires must not be reversed.
  • When using wireless electronic devices, avoid proximity to metal objects, large electronic equipment, electromagnetic fields, and other sources of strong interference.
